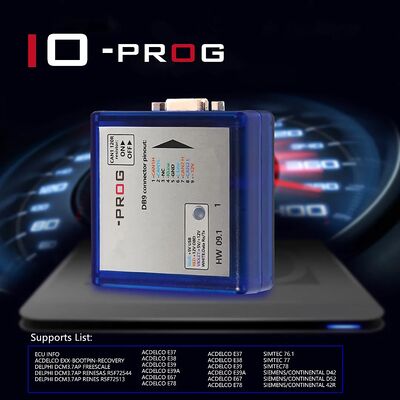

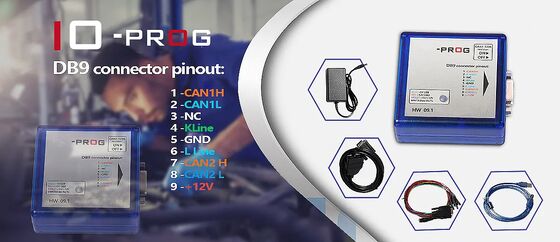

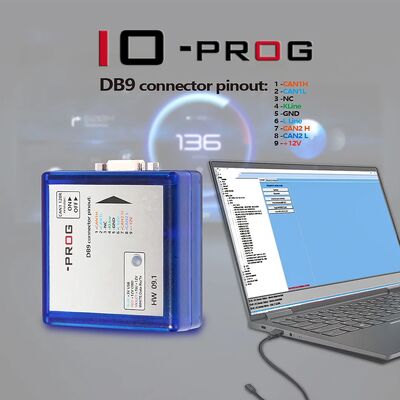

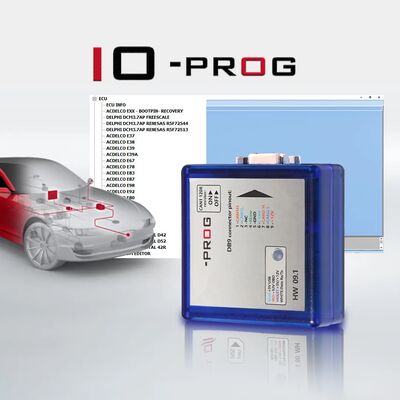

IO-PROG Programmer Add New License Connector Pinout IO Prog Terminal MultiTool Device for OPEL/G-M ECU BCM TCM EPS

new updated PSA BSI Feature:

NOTE : MULTITOOL +OPEL / GM ECU LICENSE

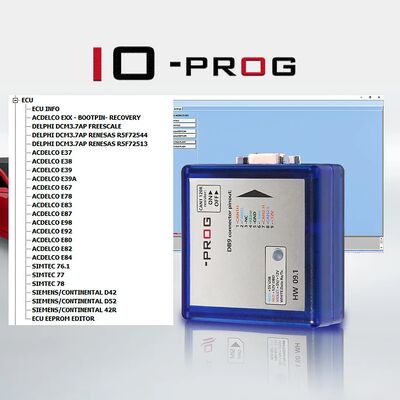

IO Prog Opel / GM ECU List
Reading / writing of OPEL / GM ECUs by CAN (OBD or wired on the bench) . Also
software has bootpin recovery mode.
Supported OPEL / GM ECU types
ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
DEL PHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
DEL PHI DCM3.7AP R5F72544 FLASH + DATAFLASH R/W.CAN (OBD);
DEL PHI DCM3.7AP R5F72513 FLASH + DATAFLASH R/W.CAN (OBD);
ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
ACDELCO (BOCH) E84 MPC5676 FLASH R/W.CAN (OBD);
EEPROM DUMP VIEWER, EDITOR.


IO Prog Opel BCM List
Reading / writing of OPEL BCM modules made by DEL PHI, BO SCH, CONTINENTAL.
Also software extracts PIN CODE rom the EEPROM dump or data flash dump.
Supported BCM / BSI types
OPEL DEL PHI BCM 70F3238 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3238 FLASH R/W;
OPEL DEL PHI BCM 70F3379 + 93C86 CAN . EEPROM 93C86 R/W, show PIN, reset
PIN. 70F3379 FLASH R/W;
OPEL DEL PHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show
PIN, reset PIN;
OPEL / GM BO SCH BCM 70F3469 + 24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W
show PIN, reset, change odometer, change VIN; OPEL / GM BO SCH BCM 70F3385 + 24C16.70F3385 FLASH R/W. EEPROM 24C16
R/W show PIN , reset, change odometer, change VIN;
OPEL / GM BO SCH BCM 70F3558 + 24C32.70F3558 FLASH R/W. EEPROM 24C32
R/W show PIN, reset, change odometer, change VIN;
OPEL / GM CONTINENTAL BCM 70F3469 + 95160(25160). 70F3469 FLASH R/W.
EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
OPEL / GM CONTINENTAL BCM 70F3558 + 95320(25320) .70F3558 FLASH R/W.
EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.

IO Prog Opel / GM TCM List
Reading / writing of OPEL / GM TCM 6T30, 6T35, 6T40, 6T45, 6T50, 6T70,
6T75, 6T80, 6L45, 6L50, 6L80, 6L90 via CAN (OBD or wired on the bench).
Supported OPEL / GM TCM types:
TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);
TCM 6T70, 6T75, 6T80, 6L45, 6L50, 6L80, 6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).

IO Oprog Opel / GM EPS List
Reading / writing of OPEL / GM EPS modules via CAN (OBD or wired on the bench).
Supported OPEL / GM EPS types:
EPS BO SCH 70F3187 + 95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).

ECUHELP IO-PROG Opel GM ECU Programmer via OBD / on Bench (Basic Version)

IO-PROG Terminal MULTITOOL function:
1. Read and write OPEL / GM ECU via OBD or on Bench .
2. Software has bootpin recovery mode.

IO-PROG Terminal MULTITOOL Supported OPEL/GM ECU types
ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E84 Reading and Writting
ACDELCO E98 Reading and Writting
DEL PHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
DEL PHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
DEL PHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);
ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
ACDELCO (BO SCH) E84 MPC5676 FLASH R/W.CAN (OBD);
EEPROM DUMP VIEWER, EDITOR.

ECUHELP IO-PROG Opel GM ECU BCM EPS TCM Programmer Terminal Multi for by OBD or on Bench [Full Version]
