Xtruck M1 Motorcycle Diagnostic Tool with 30+ Reset Services and 29+ Brands Supported Featuring Wi-Fi Online Updates
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| مدل | Xtruck M1 | عملکرد 1 | کدهای گسل را بخوانید/پاک کنید |
|---|---|---|---|
| عملکرد 2 | داده های زنده | عملکرد 3 | تست محرک |
| عملکرد 4 | فریز کردن داده های فریم | عملکرد 5 | تست سیستم ABS و خونریزی |
| عملکرد 6 | تنظیم و تنظیم دریچه گاز | تابع 7 | راهنمای عیب یابی |
| عمل | پایدار و قابل اعتماد، عالی | رنگ | نارنجی |
| وضعیت | جدید | ضمانت | 1 سال |
| برجسته کردن | 30+ Reset Services Motorcycle Diagnostic Tool,29+ Brands Supported Bike ECU Tester,Wi-Fi Online Updates Motorbike Scanner,29+ Brands Supported Bike ECU Tester,Wi-Fi Online Updates Motorbike Scanner |
||
توضیحات محصول

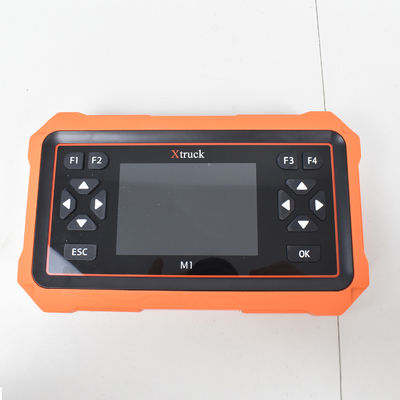

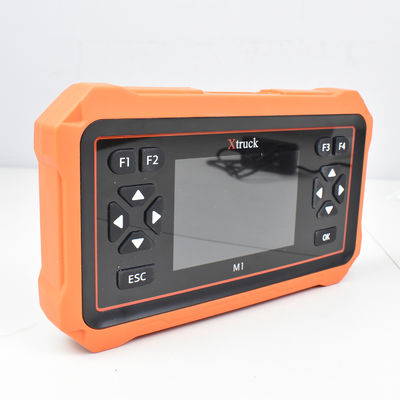

Xtruck M1 is a professional motorcycle diagnostic equipment with a brand new exterior design,handheld operation, convenient and flexible use, supporting WIFI online and SD card upgrades, large capacity storage, and reserved CAN bus interface.
Support Language:
Traditional Chinese,English, Spanish, French, Thai, Turkish, Vietnamese, Indonesian, Portuguese, Japanese, Korean, German.
Support Brand:
ADIVA,AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BRIXTON, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON, HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD, SUZUKI, SYM, TRIUMPH, VESPA, YAMAHA, YIBEN.
Function:
· Read system information
· Freeze data
· Clear fault codes
· ABS system testing
· Charging test
· DTC query
· CO idle speed adjustment
· Read fault codes
· Read data stream
· Actuator testing
· Start testing
· Fuel injector detection
· Troubleshooting guidance
· Signal output
· Maintenance assistant
. Fuel injector detection
Special Functions:
| 1. Idle CO Adjust | 42. TPS idle | 83. Reset gears |
| 2. TPS Reset | 43. TPS maximum | 84. Enable ABS |
| 3. TPS/ABV Reset | 44 . ISC value reset (not available on all models) | 85. Disable ABS |
| 4. Reset TPS | 45. TPS reset(not available on all models) | 86. Enable DQS |
| 5. Carbon Time Reset | 46. Clear car network serial number | 87. Disable DQS |
| 6. Reset ABV time | 47. Learning value reset | 88. DESMO service light reset |
| 7. COFPC Reset | 48. TPS full open learning value reset | 89. OIL service light reset |
| 8. Throttle Reset | 49. O2 feedback learning value reset | 90. DENSO service light reset |
| 9. ABV Reset | 50. ISC learning value reset | 91. Keys'reset |
| 10. APV Reset | 51. Front Wheel Bleed | 92. OIL SERVICE light reset |
| 11. Oil Priming | 52. Rear Wheel Bleed | 93. PIN code reset |
| 12. ISC Learning Reset | 53. Braking system bleeding | 94. Clean the maintenance light |
| 13. Run Acc.Time Reset | 54. ABS Reset | 95. ECM Update |
| 14. Front Cylinder | 55. ABS Bleed | 96. RESET TO NEW |
| 15. Rear Cylinder | 56. Parameter adjustment | 97. READ EEPROM 95320 |
| 16. Idle Adjust | 57. Idle actuator calibration | 98. WRITE EEPROM 95320 |
| 17. Idle PRM Adjust | 58. Engine synchronization | 99. READ KEY_DATA BLOCK |
| 18. Datastream | 59. Reset adaptive values | 100. READ EEPROM 95080 |
| 19. Diag.Tool ON/OFF | 60. Set motorcycle date | 101. WRITE EEPROM 95080 |
| 20. CO Adjustment | 61. Set the service date | 102. Read ST7 internal EEPROM |
| 21. Set TPS to zero | 62. Set the service mileage | 103. Write ST7 internal EEPROM |
| 22. Set autoadaptive value to zero | 63. Adaptation | 104. READ MC68HC05 EEPROM |
| 23. Auto learn throttle position | 64. Throttle adaptation | 105. WRITE MC68HC05 EEPROM |
| 24. Reset self-adaptive values | 65. Lambda adaptation | 106. Clear engine speed history |
| 25. ECM Reset | 66. Idling adaptation | 107. Clear Engine Extreme History |
| 26. Reset autoadaptive values | 67. Idle motor adjustment | 108. Clear key usage time record |
| 27. CO value adjustmen | 68. Reset self-adaptive A/F parameters | 109. Clear Last minute record |
| 28. Throttle closed learning value reset | 69. TPS reset closed position | 110. Adaptation values reset |
| 29. Idle valve opening learning value reset | 70. Adjustment of exhaust-flap | 111. Throttle balancing |
| 30. ECU reset | 71. Adjustment of balance pipe | 112. ISC apperture learned value reset |
| 31. Autoadaptive value Reset | 72. Enable speed limit | 113. Throttle learning value reset |
| 32. Idle position throttle self-learning | 73. Lift speed limit | 114. ISC rpm control |
| 33. Max position throttle self-learning | 74. Setting TPS to zero | 115. Oxygen sensor learning value setting |
| 34. Throttle position self-adapt | 75. CO calibration | 116. TPS Setup |
| 35. Reset self-adapting parameters | 76. Service lamp switch-off | 117. Oil maintenance lamp reset |
| 36. ECU Reset | 77. Self-adaptive parameters zero-setting | 118. ISC idle valve learning value reset |
| 37. Fuel trim,map 1 | 78. TPS reset | 119. TP throttle fully closed learning value reset |
| 38. Fuel trim,map 2 | 79. CO trimmer | 120. ISC speed control |
| 39. Manual TPS max | 81. APS reset closed position | 121. Long term fuel correction value reset |
| 40. Minimum CO map 1 | 81. Throttle position sensor reset | |
| 41. Minimum CO map 2 | 82. Air/fuel ratio learning value reset |
ECU Information: (Support Brand )
ADIVA,AEON,APRILIA,ARCTIC CAT,BAJAJ,BENELLI,BMW,BOMBARDIER,Peugeot,DUCATI,HARLEY-DAVIDSON,HARTFORD,HONDA,HYOSUNG,KAWASAKI,KTM,KYMCO,MODENAS,OBDII,PGO,PIAGGIO,ROYAL ENFIELD,SUZUKI,SYM,TRIUMPH,VESPA,YIBEN
Read Fault Code:(Support Brand )
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BRIXTON, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON, HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD, SUZUKI, SYM, TRIUMPH, VESPA, YAMAHA, YIBEN
Erase Fault Code:(Support Brand )
ADIVA,APRILIA,ARCTIC CAT,BENELLI,BMW,BRIXTON,BOMBARDIER,Peugeot,DUCATI,HARLEY-DAVIDSON,HONDA,HYOSUNG,KAWASAKI,KTM,KYMCO,MODENAS,OBDII,PGO,PIAGGIO,ROYAL ENFIELD,SUZUKI,SYM,TRIUMPH,VESPA,YAMAHA,YIBEN
Freeze Frame Data: (Support Brand )
AEON,BRIXTON,BOMBARDIER,HARTFORD,KAWASAKI,OBDII,PGO,ROYAL ENFIELD,SUZUKI,YAMAHA
Live data: (Support Brand )
ADIVA, AEON, APRILIA, ARCTIC CAT, BAJAJ, BENELLI, BMW, BOMBARDIER, Peugeot, DUCATI, HARLEY-DAVIDSON,
HARTFORD, HONDA, HYOSUNG, KAWASAKI, KTM, KYMCO, MODENAS, OBDII, PGO, PIAGGIO, ROYAL ENFIELD,
SUZUKI, SYM, TRIUMPH, VESPA, YIBEN
Actuator Test:(Support Brand )
ADIVA,APRILIA,BENELLI,BMW,BOMBARDIER,DUCATI,HYOSUNG,KAWASAKI,KTM,OBDII,PIAGGIO,SUZUKI,TRIUMPH,
VESPA,YIBEN
Diagnostic: (Support Brand )
BRIXTON, YAMAHA
I/M Readiness: (Support Brand )
OBDII, SUZUKI
Xtruck M1 OBD version:

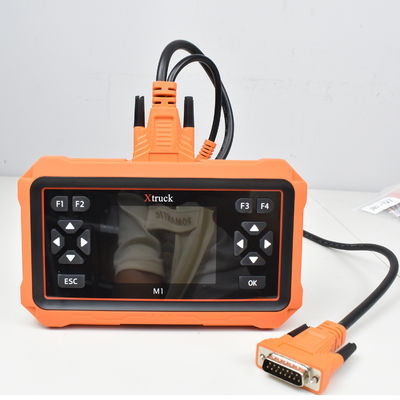

1 x Main Unit

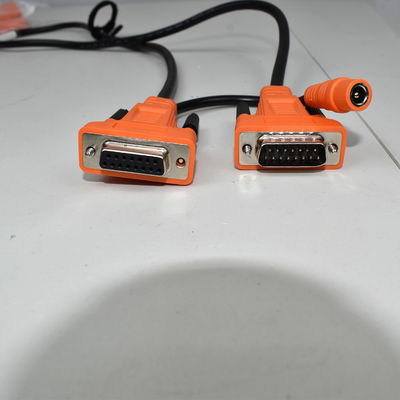

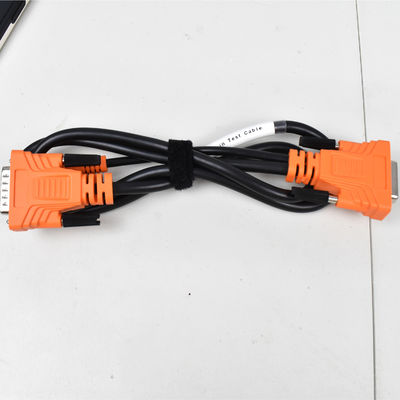

1 x Main Test Cable
1 x Power Adapter

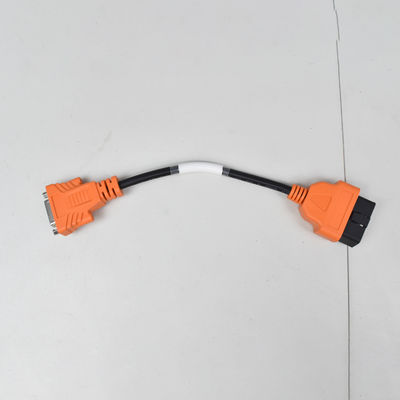

1 x OBD-16pin Cable

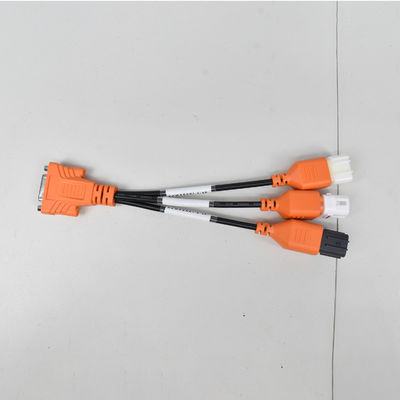

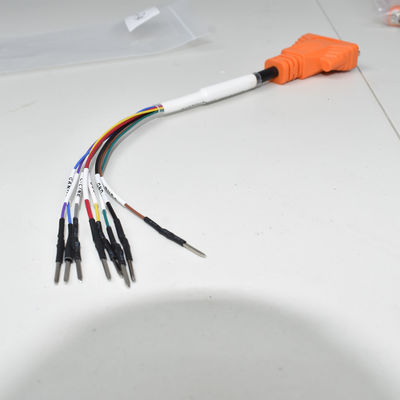

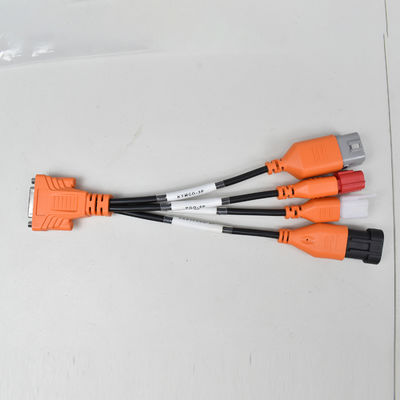

1x Universal Jump Cable
1 x User Manual
1-Year Warranty & Professional Support:
We stand behind our product with a 1-year warranty and dedicated customer service. Our support team is available during extended business hours to address your inquiries. Should you encounter any compatibility issues, please contact us – our technical team is committed to providing timely assistance and solutions.
